Polystyrene absorbersEMC900S

EMC anechoic chamber absorbers

EMC**S Series

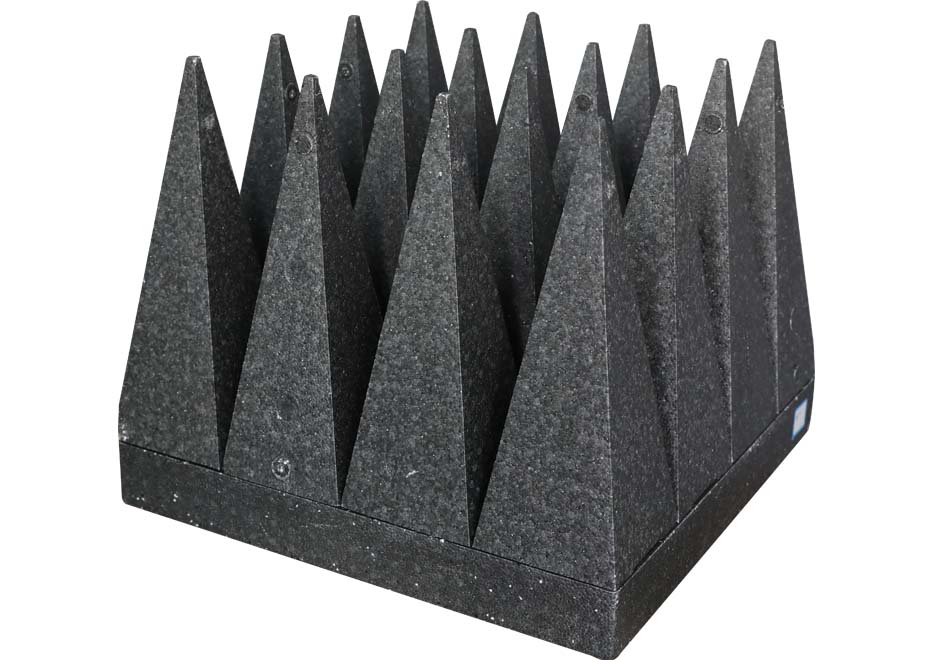

It is an electric wave absorber based on expanded polystyrene that uses a resistive loss absorber and a ferrite magnetic loss absorber.

peculiarity

● Good density uniformity, small radio wave attenuation error, and reduce normalized site attenuation error.

● The water absorption rate is extremely low, and the electrical performance is not affected under different humidity conditions, so as to achieve more stable performance of the darkroom.

● It has ultra-wideband radio wave absorption performance, 0.03-40GHz test range.

● The material has flame resistance, and it achieves GB8624 B2 grade

● Suitable for 3m method, 5m method and 10m method darkroom

● The material is light in weight, which reduces the load-bearing capacity of the wall.
